MX5 ME442 Plug-In ECU Engine Management System (3-Plug) (1996–1997)

A Motorsport Electronics ME442 MX-5 Plug-In ECU engine management system for the Mazda MX-5 NA (1996–1997).

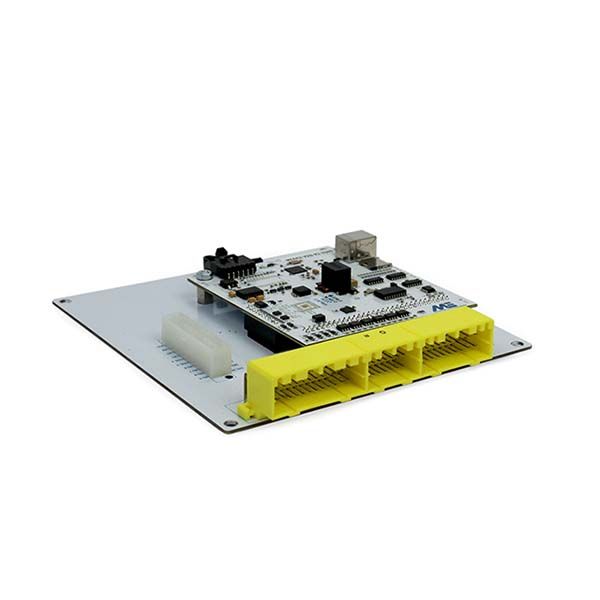

This easy-to-install Plug-In ECU with an integrated lambda sensor replaces the original circuit board inside the housing of the Mazda MX-5 NA’s factory ECU using three connectors. Because the ECU fits into the original OEM housing and uses the original connector, this is a discreet and efficient way to upgrade the engine management system.

The system supports both the 1.6L and 1.8L engines with the same hardware. The only additional adjustment required is the included vacuum hose, which must be connected from the ECU to the intake manifold.

The kit consists of the following parts:

• ME442ECU
• Bosch LSU4.9 Wideband Sensor and Integration Harness
• MAP vacuum hose
• USB cable

The ME442 Plug-In ECU has the following specifications:

• Accelerometer and gyroscope
• CAN Bus for external dashboards and expandability
• Closed-loop boost, lambda, and idle control
• Drive-by-Wire support
• DSP Knock Control
• An open approach to firmware/software functions.
• Truly plug-in: supports both switched TPS and linear TPS conversions.
• Comes with base boards certified and developed by Rolling Road for turbo or naturally aspirated setups.
• Built-in Bosch Wideband Lambda O2 controller
• Built-in real-time clock and SD card data logging
• Built-in 60 psi MAP sensor
• K-type EGT input
• Utilizes the powerful MEITE tuning studio.
• Uses the ME221 ECU core (NXP Automotive Processing Power)
• Supports factory sensors.
• VE-based fuel tank algorithm.
• Regular firmware updates and improvements
• Start-up check
• USB connectivity
• Supports all types of high-impedance injectors
• Fully sequential in version 1.8
• 16×16 fuel and ignition tables (with dual table switching)

Please note!

Check whether your stock ECU has 2 or 3 connectors before ordering. The 1996 and 1997 MX5 NA models have 3 connectors.
For the 1986 through 1995 MX5 NA, there are 2 connectors. For this model, you’ll need part number 0805NA04.
