MX5 ME442 Plug-In ECU Engine Management System

A Motorsport Electronics ME442 MX5 Plug-In ECU engine management system for the Mazda MX5 NBFL (2001–2005).

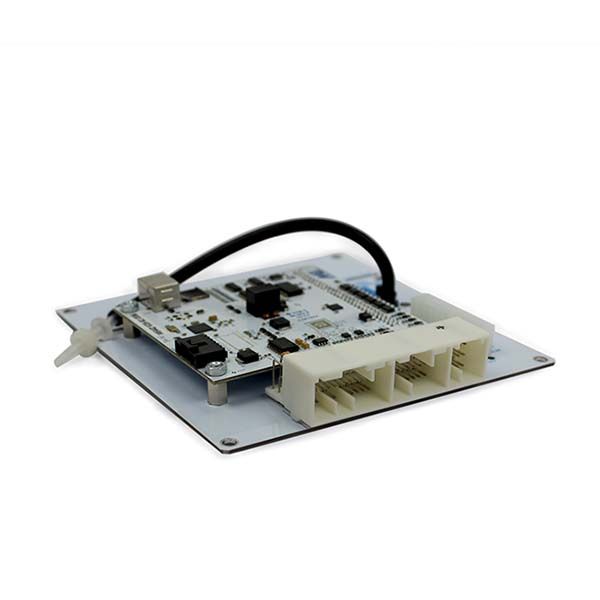

This easy-to-install Plug-In ECU with an integrated lambda sensor replaces the original circuit board inside the Mazda MX5’s factory ECU housing. Because the ECU fits into the original OEM housing and uses the original connector, this is a discreet and efficient way to upgrade the engine management system.

The system supports both the 1.6L and 1.8L engines with the same hardware.

The kit consists of the following parts:

• ME442ECU
• Bosch LSU4.9 Wideband Sensor and Integration Harness
• Vacuum hose
• USB cable

The ME442 Plug-In ECU has the following specifications:

• Accelerometer and gyroscope
• CAN Bus for external dashboards and expandability
• Closed-loop boost, lambda, and idle control
• Drive-by-Wire support
• DSP Knock Control
• An open approach to firmware/software functions.
• Truly plug-in: supports both switched TPS and linear TPS conversions.
• Comes with base boards certified and developed by Rolling Road for turbo or naturally aspirated setups.
• Built-in Bosch Wideband Lambda O2 controller
• Built-in real-time clock and SD card data logging
• Built-in 60 psi MAP sensor
• K-type EGT input
• Utilizes the powerful MEITE tuning studio.
• Uses the ME221 ECU core (NXP Automotive Processing Power)
• Supports factory sensors.
• VE-based fuel tank algorithm.
• Regular firmware updates and improvements
• Start-up check
• USB connectivity
• Supports all types of high-impedance injectors
• Fully sequential in version 1.8
• 16×16 fuel and ignition tables (with dual table switching)
